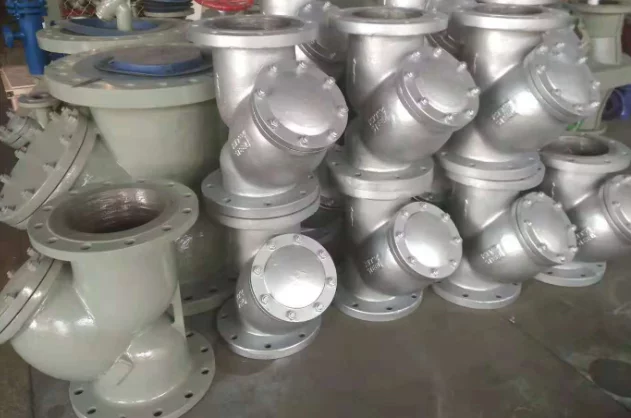

Y Strainer

20.302,449.69
In Stock
Custom Enquiry
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: ,

Description

Y Strainer

Body: Carbon Steel, CF8, CF8M, CF3M, Cast Iron, SS304, SS316

Screen: SS304, SS304L, SS316, SS316L

Gasket: Graphite+Stainless Steel

Cover: A105, F304, F304L, F316, F316L

Cover Ball: A193 B7, A193 B8, A193 B8M

Cover Nut: 2H

Drain Plug: A193 B7, A193 B8, A193 B8M

Nominal Diameter: DN25 to DN500

Nominal Pressure: Class150 to Class300

Design and Manufacture: API 6D, ANSI B16.34

Flange End Dimension: ASME B16.25

Face to Face Dimension: ASME B16.25

Inspection and Test: API 598

Dimensions                                                                                              Unit: mm

Class150

DN L H H1
15 140 73 103
20 150 88 127
25 160 93 137
32 180 100 148
40 220 115 168
50 230 155 195
65 250 198 270
80 280 210 295
100 350 250 344
125 400 305 422
150 440 358 485
200 500 450 602
250 580 503 710
300 670 578 815
350 780 598 844
400 850 618 872
450 850 693 978
500 1000 765 1080

Additional information

Body Material

Cast iron, Cast Steel, CF8, CF8M

Class

150/PN16

Connection Type

Buttweld, Flanged, Socket weld

Size

1 1/2", 1 1/4", 1", 1/2", 10", 12", 14", 2 1/2", 2", 3", 3/4", 4", 5", 6", 8"
