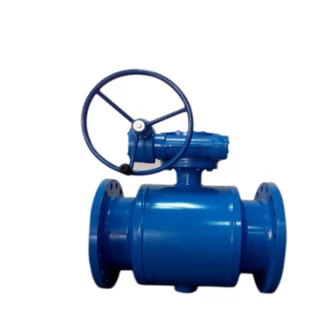

Top Entry Ball Valve

Name Top Entry Ball Valve
Size DN15 to DN600
Normal pressure Class 150, 300, 600, 900, 1500, 2500;  PN16, PN40, PN64, PN100, PN160, PN250
Design standard API 6D, API 608, ASME B16.34, MSS SP-72,BS5351; ISO17292, EN13709
Marked MSS SP-25
Fire safe design API607, API 6FA
End flange ANSI B 16.5, ASME B16.47; EN1092, DIN2543 – DIN2547, AS2129
Face to Face ANSI B 16.10, API 6D;  DIN3202, EN558-1, EN12982, ISO 5752
Top flange ISO 5211
Test standard API598, API6D; DIN3230, EN12266, ISO 5208
Suitable temperature -10 to 200°C
Medium Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.
Acidic environment

NACE MR0175
Operation Hand Operated,Gear Operated, Electrical Actuated, Pneumatic Actuated

STRUCTURE:

Full Port or Reduce Port
One Piece Body,Top Entry,Floating or Trunnion Mounted
Bolted Bonnet with spiral-would gasket

Fire Safe Design
Anti-static Design & Blow-out proof stem
Double seat structure

Nace MR-01-75, Optional Locking Device

Dimensions:

Class 150

SIZE 2″ 2-1/2″ 3″ 4″ 6″ 8″ 10″ 12″ 14″ 16″ 20″ 24″ 28″
(DN) 50 65 80 100 150 200 250 300 350 400 500 600 700
L (RF&BW) 178 190 203 229 394 457 533 610 686 762 914 1143 1245
H1 65 74 88 100 150 185 230 265 300 345 420 490 580
H 445 495 545 560 675 700 800 885 1005 1035 1255 1430 1680
W 200 300 300 300 400 500 600 600 650 650 700 800 800
Weight (kg) 30 45 57 100 215 407 560 710 860 1100 1931 3200 4600

Class 300

SIZE

(DN)

 2″ 21/2″ 3″ 4″ 6″ 8″ 10″ 12″ 14″ 16″ 20″ 24″ 28″
50 65 80 100 150 200 250 300 350 400 500 600 700
BORE DIAMETER 51 65 76 102 152 203 254 305 337 387 489 591 686
L 216 241 283 305 403 502 568 648 762 838 991 1143 1346
H1 65 74 88 100 150 185 230 265 300 345 420 490 580
H 445 495 545 560 675 700 800 885 1005 1035 1255 1430 1680
W 200 300 300 300 400 500 600 600 650 650 700 800 800
Weight (kg) 36 52 75 130 250 550 680 890 1080 1450 2500 4200 5900

Class 600

SIZE

(DN)

 2″ 21/2″ 3″ 4″ 6″ 8″ 10″ 12″ 14″ 16″ 20″ 24″ 28″
50 65 80 100 150 200 250 300 350 400 500 600 700
BORE DIAMETER 51 65 76 102 152 203 254 305 337 387 489 591 686
L 292 230 356 432 559 660 787 838 889 991 1194 1397 1549
H1 75 80 93 110 160 200 240 275 320 365 440 500 610
H 470 520 570 585 700 735 840 935 1060 1070 1300 1480 1740
W 200 300 300 300 400 500 600 600 650 650 700 800 800
