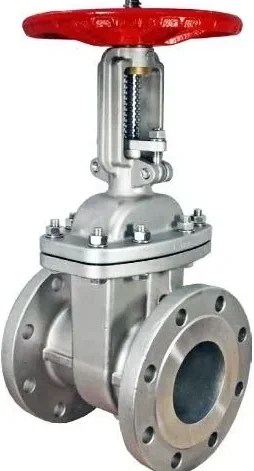

Titanium Gate Valve
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Titanium Gate Valve
Body: Titanium TA1, TA2, TA10, TC4, GR2, GR3, GR5, Duplex Stainless Steel, Super Duplex Stainless Steel
Disc: Titanium TA1, TA2, TA10, TC4, GR2, GR3, GR5, Duplex Stainless Steel, Super Duplex Stainless Steel
Trim: Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L, Stellite, Hastelloy
Gland Packing: Graphite, PTFE
Nominal Size: DN50 to DN400
Nominal Pressure: PN10 to PN64, Class150 to Class1500

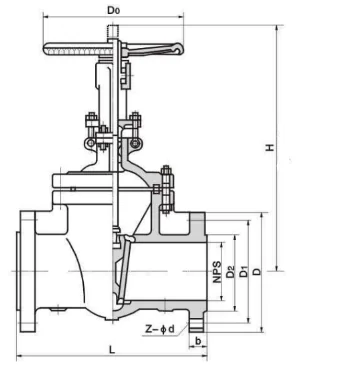

Dimensions Unit: mm
Class150
| DN | L | H | D1 | D2 | b | Z-фd | D0 | |
| 50 | 178 | 409 | 152 | 120 | 92 | 19 | 4-19 | 200 |
| 80 | 203 | 570 | 190 | 152 | 127 | 23 | 4-19 | 250 |
| 100 | 229 | 590 | 229 | 190 | 157 | 23 | 8-19 | 250 |
| 150 | 267 | 630 | 279 | 241 | 216 | 25 | 8-22 | 300 |
| 200 | 292 | 960 | 343 | 298 | 270 | 28 | 8-22 | 350 |
| 250 | 330 | 1158 | 406 | 362 | 324 | 30 | 12-25 | 400 |
| 300 | 356 | 1378 | 483 | 432 | 381 | 31 | 12-25 | 450 |
| 350 | 381 | 1543 | 533 | 476 | 413 | 35 | 12-29 | 500 |
| 400 | 406 | 1738 | 597 | 539 | 470 | 36 | 16-29 | 600 |
| 450 | 432 | 1959 | 635 | 578 | 533 | 39 | 16-32 | 600 |
| 500 | 457 | 2214 | 698 | 635 | 584 | 42 | 20-32 | 680 |
| 600 | 508 | 2599 | 813 | 749 | 692 | 47 | 20-35 | 760 |
