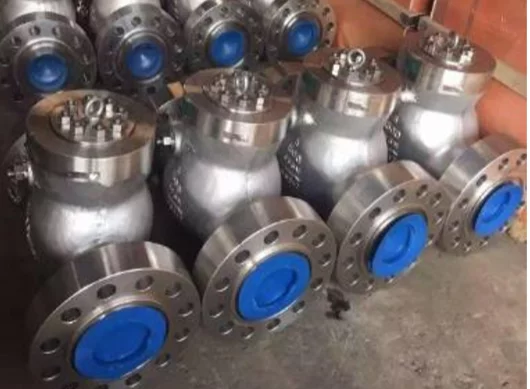

Swing Check Valve

15.009,752.97
In Stock
Custom Enquiry
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A

Description

Swing Check Valve

Body: Cast Iron, Cast Steel, Ductile Iron, SS304, SS316, SS316L, F316L, CF3M

Bonnet: Cast Iron, Cast Steel, Ductile Iron, SS304, SS316, SS316L, F316L, CF3M

Disc: WCB, CF8, LCC, C5

Seat: A105, F304, LF3, F5a

Disc Washer: Carbon Steel, SS316

Bolt Washer: Carbon Steel, SS316

Gasket: Graphite+Stainless Steel

Disc Pin: SS304

Eyebolt: Carbon Steel

Nominal Diameter: DN50 to DN600

Nominal Pressure: Class150 to Class300, PN16 to PN100

End Connection: Flanged, Buttweld

Design and Manufacture Standard: BS1868, API6D, DIN3352

Face to face Dimension: ASME B16.10, EN558

Test and Inspection: API598, EN12266-1

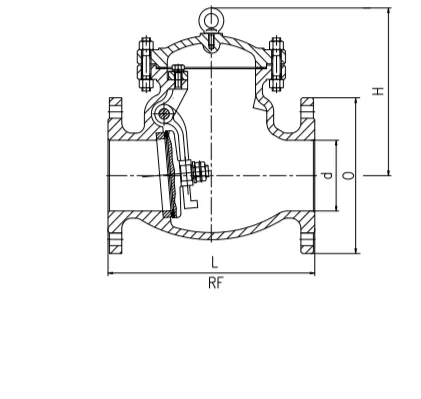

Dimensions                                                                                          Unit:mm

Class150

DN d L O H
50 51 203 150 510
65 64 216 180 170
80 76 241 190 180
100 102 292 230 237
125 152 356 280 305
150 203 495 345 370
200 254 622 405 420
250 305 698 485 440
300 337 787 535 470
350 387 864 595 520
400 438 978 635 580
450 489 978 700 630
500 591 1295 815 870
600 635 1295 870 901

Additional information

Body Material

A182 F316L, A351 CF3M, Cast iron, Cast Steel, Ductile Iron, SS304, SS316, SS316L

Class

150, 150/PN16, 300, 600, PN10/16, PN64

Size

1 1/2", 1", 10", 12", 14", 16", 18", 2 1/2", 2", 20", 24", 3", 4", 5", 6", 8"
