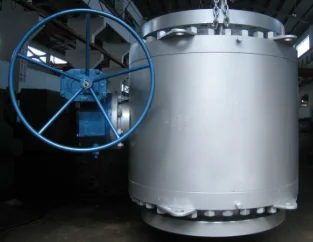

Super Duplex Trunnion Mounted Ball Valve
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Super Duplex Trunnion Ball Valve
Body: Super Duplex Stainless Steel
Ball: Super Duplex Stainless Steel
Seats: PTFE, HDPE, RPTFE, PPL
Seals: EPDM
Stem: Super duplex stainless steel
Nominal Size: DN50 to DN400
Nominal Pressure: Class150 to Class2500, PN16 to PN63

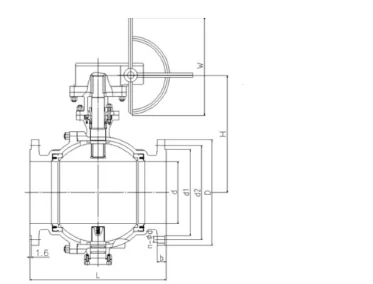

Dimensions Unit: mm
Class150
DN | d | L(RF) | d1 | d2 | D | b | n-Фd | H | W |
50 | 51 | 216 | 92 | 127 | 165 | 23 | 8-Ф19 | 176 | 350 |
65 | 64 | 241 | 105 | 149 | 190 | 26 | 8-Ф22 | 200 | 400 |
80 | 76 | 283 | 127 | 168.5 | 210 | 29 | 8-Ф22 | 215 | 400 |
100 | 102 | 305 | 157 | 200 | 254 | 32 | 8-Ф22 | 252 | 500 |
150 | 152 | 403 | 216 | 270 | 318 | 37 | 12-Ф22 | 330 | 1000 |
200 | 203 | 502 | 270 | 330 | 381 | 42 | 12-Ф25 | 448 | 300 |
250 | 254 | 568 | 324 | 387.5 | 445 | 48 | 16- Ф 29 | 505 | 350 |
300 | 305 | 648 | 381 | 451 | 521 | 51 | 16- Ф 32 | 556 | 400 |
350 | 337 | 762 | 413 | 514.5 | 584 | 54 | 20- Ф 32 | 620 | 500 |
400 | 387 | 838 | 470 | 571.5 | 648 | 58 | 20- Ф 35 | 700 | 500 |
