Super Duplex 5A Gate Valve

€504.00 – €1,481.00
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: , ,

Description

Super Duplex 5A Gate Valve

Body: Super Duplex 5A Stainless Steel, Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6,

WC9,C5, C12, LCB, CF3M

Bonnet, Gate: Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6,

WC9, ?C5, C12, LCB, CF3M

Trim: SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel, Super

Duplex Stainless Steel

Gland Packing: Graphite, PTFE

Nominal Size: DN15 to DN500

Nominal Pressure: PN 1.0 to 25 Mpa, Class 150 to 2500

End Connections: Flanged, Socketweld, Buttweld

Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated

Design and Manufacture Standard: ANSI B16.34, API 600, API 6D, API 603, BS1414

Face to Face Dimension: ANSI B16.10, API 6D

Flanged End Dimension: 2? to 24? , ANSI B16.5, 26? to 36?,? MSS-SP-44 to API605

Butt welded end: ANSI B16.5

Inspection and Test: API 598, API 6D

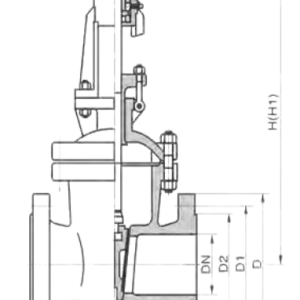

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit: mm? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PN16

DN L D D1 D2 b Z-d f H H1 D0
15 130 95 65 45 14 4-14 2 220 240 120
20 150 105 75 55 14 4-14 2 255 284 140
25 160 115 85 65 14 4-14 2 275 303 160
32 180 135 100 78 16 4-18 2 280 321 180
40 200 145 110 85 16 4-18 3 300 352 200
50 250 160 125 100 16 4-18 3 358 438 240
65 265 180 145 120 18 4-18 3 375 450 240
80 280 195 160 135 20 8-18 3 438 528 280
100 300 215 180 155 20 8-18 3 502 620 320
125 325 245 210 185 22 8-18 3 612 753 360
150 350 280 240 210 24 8-23 3 676 847 360
200 400 335 295 265 26 12-23 3 820 1039 400
250 450 405 355 320 30 12-25 3 969 1245 450
300 500 460 410 375 30 12-25 3 1142 1472 560
350 550 520 470 435 34 16-25 4 1280 1450 640
400 600 580 525 485 36 16-30 4 1452 1887 640
450 650 640 585 545 40 20-30 4 1541 2011 720
500 700 705 650 608 44 20-34 4 1676 2181 720

Additional information

Body Material

Super Duplex
Class

150
Connection Type

Flanged
Size

1 1/2", 1", 1/2", 2", 3"
