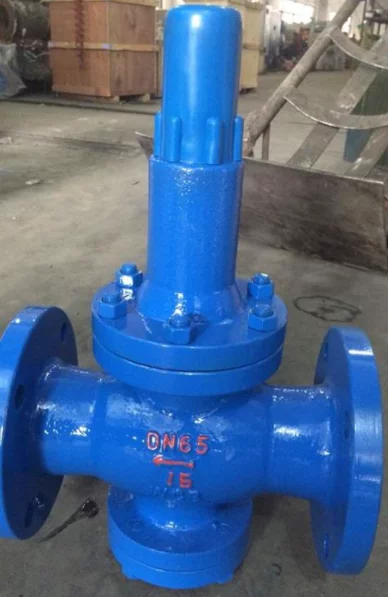

Steam Pressure Reducing Valve

260.60674.90
In Stock
Custom Enquiry
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service

Description

Steam Pressure Reducing Valve

Body, Bonnet: Ductile Iron, WCB

Disc: 2Cr13

Seat: SS410, 2Cr13

Plug: SS410, 2Cr13

Stem: 2Cr13, SS410

Diaphragm: 321 S.S.

Adjustable Spring: UNS G92600, 1Cr18Ni9Ti

Nominal Size: DN15 to DN200

Nominal Pressure: 2.5 to 4.0MPa

Casing Body Test Pressure: 3.75 MPa

Sealing Test Pressure: 2.5 MPa

Max. Inlet pressure: 2.5 MPa

Outlet pressure range: 0.02 – 1.6 MPa

Flow Factor(Cv)

DN: 15, 20, 25, 32, 40, 50.

Cv: 2.9, 5.3, 8.6, 11.6, 16.5, 29.1.

Dimensions                                                               Unit:mm

DN 15 25 50 100 150 200
L 160 180 250 350 450 500
H 295 330 245 385 415 475
H1 90 110 125 170 210 240

Additional information

Body Material

Ductile Iron

Class

PN25, PN40

Connection Type

Flanged, Screwed

Size

1 1/2", 1 1/4", 1", 1/2", 2", 3", 3/4"
