Single Plate Wafer Check Valve

€83.20 – €1,316.80
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: ,

Description

Single Plate Wafer Check Valve

Body Material: Cast Iron, Ductile Iron, Cast Steel, Stainless Steel, Aluminium Bronze

Disc: Ductile Iron, Stainless Steel, Aluminium Bronze

Spring: Stainless Steel

Stem: Stainless Steel

Seat: EPDM, NBR, VITON, CF8, CF8M

Nominal Diameter: DN50 to DN900

Nominal Pressure: Class 150 to Class 2500

Face to Face Dimension: API 594, ASME B16.10

Flanged End Dimensions: ASME B16.10

Inspection and Test: API 598

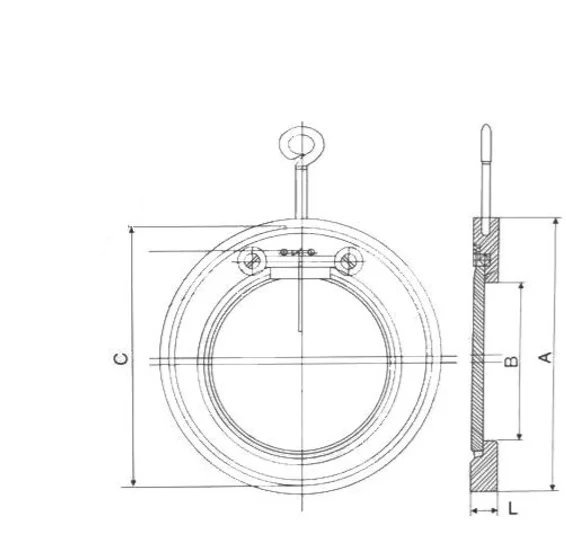

Dimensions                                                                                 Unit: mm

Class150

DN A B L
40 87 23 19
50 104 30 19
65 124 41 19
80 136 54 19
100 174 71 19
125 197 92 19
150 222 112 19
200 279 155 28
250 339 201 28
300 409 240 38
350 450 270 44
400 514 311 51
450 549 360 60
500 606 410 64
600 717 490 –

Additional information

Body Material

Carbon Steel, Stainless steel
Class

150/PN16
Size

10", 12", 2 1/2", 2", 3", 4", 5", 6", 64", 8"
