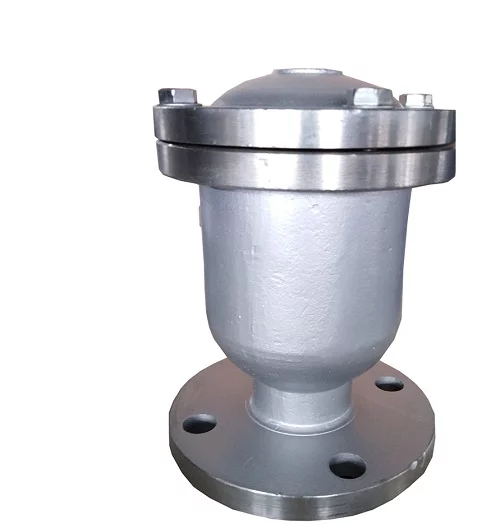

Single Orifice Air Valve

€44.72 – €65.68
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: ,

Description

Single Orifice Air Valve

1. Body: Cast iron, Ductile Iron, Stainless Steel

2. Bucket: Cast iron, Ductile Iron, Stainless Steel

3. Float Ball: Stainless Steel

4. Gasket: NBR, EPDM

5. Inside Cover: Cast iron, Ductile Iron, Stainless Steel

6. Bolt: Carbon Steel, Stainless Steel

7. Outside Cover: Cast iron, Ductile Iron, Stainless Steel

8. Bolt: Carbon Steel, Stainless Steel

9. Bonnet: Cast iron, Ductile Iron, Stainless Steel

10. Cap : Cast iron, Ductile Iron

11. Stem: Stainless Steel

12. Stem Yoke: Stainless Steel

13. Plug: Stainless Steel

14. Top Plug: NBR+Stainless Steel

15. Plug Sleeve: Stainless Steel

Nominal Diameter: DN40 to DN200

Nominal Pressure: Class150 to Class300, PN16 to PN40

Design and Manufacture Standard: DIN3352

Flanged End Dimension: DIN2501

Inspection and Test: BS6755

Dimensions                                                                                                Unit: mm

PN16

DN D D1 D2 b H Z-фd W
40 150 110 84 18 224 4-ф19 166
50 165 125 99 20 236 4-ф19 178
65 185 145 118 20 244 4-ф19 199
80 200 160 132 22 248 8-ф19 202
100 220 180 156 24 284 8-ф19 233
150 285 240 211 26 324 8-ф23 282

Additional information

Body Material

Cast iron, Ductile Iron
Class

PN10
Connection Type

Flanged, Screwed
Size

1 1/2", 1", 1/2", 2", 3/4"
