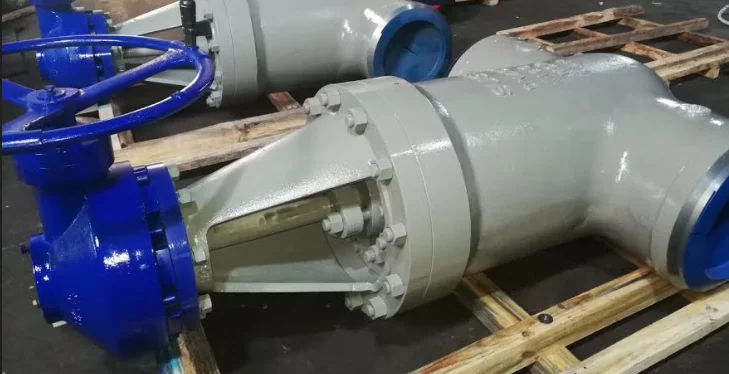

Pressure Seal Gate Valve

From: 2,230.00 From: 2,128.00

From: 2,230.00 From: 2,128.00
Clear
Custom Enquiry

Description

Pressure Seal Gate Valve

Body Material: A105, F304, F316, F304L, F316L, F51, F53, F11, F22, LCB

Bonnet: A105, F304, F316, F304L, F316L, F51, F53, F11, F22, LCB

Yoke: A105, F304, F316, F304L, F316L, F51, F53, F11, F22, LCB

Wedge: A105, F304, F316, F304L, F316L, F51, F53, F11, F22, LCB

Stem: F6a, F304, F316, F3304L, F316L

Gland: F6a, F304, F316, F3304L, F316L

Seat: F6a+Stellite, SS304, SS304+Stellite, SS304, SS316, SS304L, SS316L

Seat Ring: F6a+Stellite, SS304, SS304+Stellite, SS304, SS316, SS304L, SS316L

Packing: Graphite, PTFE

Gasket: SS304+ Graphite, SS316+Graphite

Nominal Diameter: DN50 to DN400

Nominal Pressure: Class1500 to Class2500

Design and Manufacture: API602, BS5352, ASME B16.34

Socketweld Dimension: ANSI B16.11, JIS B2306

Buttweld Dimension: ASME B16.25, DIN 3239, EN12627

Screwed Dimension: ANSI B1.20.1

End to End Dimensions: ANSI B16.5, EN1092, DIN2543, DIN2547

Face to Face Dimensions: ANSI B16.10, DIN3202, EN558-1, EN12982, ISO 5752

Inspection and Test: API598, DIN3230, EN12266, ISO 5208

End Connections: RF, RTJ, BW, SW, NPT

Operation: Handwheel Operated, Electric Operated

Dimensions                                                                                            Unit: mm

Class1500

DN d L d1 d2 D b n-фd H W
50 47 368 92 165 216 38.5 8-ф26 510 280
65 57 419 105 190.5 244 41.5 8-ф29 560 300
80 70 470 127 203.2 267 48 8-ф32 620 350
100 92 546 157 241.3 311 54 8-ф35 728 400
125 111 673 186 292.1 375 73.5 8-ф42 870 450
150 136 705 216 317.5 394 83 12-ф39 1000 500
200 178 831 270 393.7 483 92.9 12-ф45 1130 750
250 222 991 324 482.6 585 108 12-ф51 1360 900
300 263 1130 381 571.5 675 124 16-ф54
350 289 1257 413 635 750 133.5 16-ф61
400 330 1382 470 704.8 825 146.5 16-ф67
