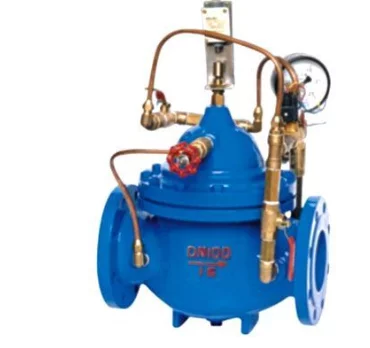

Pressure Relief Valve
€347.00 – €2,101.00
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Pressure Relief Valve
Body: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Diaphragm: EPDM , NBR
Disc: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Pilot Valve: Stainless Steel, Brass
Spring: SS304
Shaft: SS304
Working Pressure: PN1.6, PN2.5, PN4.0
Dimensions:
size(mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
L(mm) | 205 | 229 | 250 | 292 | 330 | 356 | 495 | 622 | 698 | 787 | 900 | 978 | 1075 | 1230 |
H(mm) | 270 | 305 | 320 | 400 | 455 | 502 | 636 | 750 | 913 | 913 | 1035 | 1035 | 1300 | 1370 |
H1(mm) | 200 | 210 | 220 | 260 | 310 | 342 | 413 | 510 | 600 | 600 | 685 | 685 | 880 | 950 |
Additional information
Body Material | Ductile Iron |
---|---|
Class | 150/PN16 |
Size | 10", 12", 2 1/2", 2", 3", 4", 5", 6", 8" |
