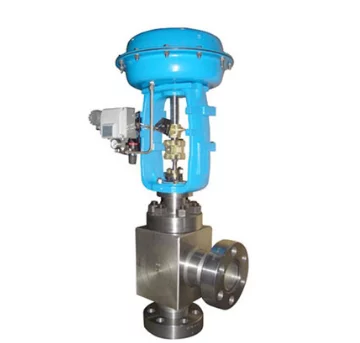

Pneumatic Angle Type High Pressure Regulating Control Valve

Body: WCB, WC6, SS304, SS316

Bonnet: WCB, WC6, SS304, SS316

Seat: SS304, SS316, Stellite

Plug Metal Sealing: SS304, SS316, Stellite

Plug Soft Sealing: SS304, SS316, Stellite

Cage: SS304, SS316

Guide Sleeve: SS304, SS316

Stem: SS304, SS316

Balanced Piston: Steel, Aluminium

Balanced Piston Ring: Fluorine Ring, SS+Reinforced PTFE, Flexible Graphite Ring

Nominal Size: DN20 to DN400

Nominal Pressure: PN 16 to PN 100, Class 150 to Class 600

Actuation Type: Spring Return, Double Acting

End Connection: Flanged, RF, MF, RTJ

Flow Characteristics Linear, Percentage, Quick Open
Allowable range 50: 1 (CV<6.3 30: 1)
Rated Cv value Percentage CV1.6 to 630 ,linear CV1.8 to 690
Allowable leakage Metal seal: IV grade(0.01% rated capacity)
Soft seal: VI grade(foam grade)
Performance Pneumatic Electric
Allowable tolerance, % ±1.5 ±1.0
Return difference, % ≤1.5 ≤1.0
Dead zone, % ≤0.6 ≤1.0
Difference from beginning to end point, % ±2.5 ±2.5
Rated travel difference, % ≤2.5 ≤2.5
Note : specification on the basis of control valve with positioned and PTFE packing.

Dimensions

DN 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
L 115 115 130 130 150 170 190 215 250 275 325 375 375 425 475
H1 95 145 193 276 330 360 420 470 520
H2 205 238 344 421 483 512 562 620 672
H3 375 398 438 521 560 575 680 750 835
H4 700 _
H5 95 110 _
ΦD1 305 340 370 405 460 525 590 700 805 950 _
ΦD2 335 370 400 435 490 555 630 740 845 990 _
H 340 390 632 930
A 228 272 400 610
Weight(kg) 24 25 28 35 37 68 80 95 148 170 231 275 475 522 624
