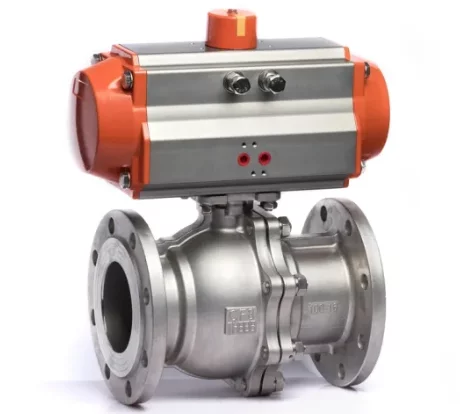

Pneumatic Actuated 2 Piece Flanged Ball Valve

In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
Categories: , , ,

Description

Pneumatic Actuated 2 Piece Flanged Ball Valve

Description:

  • Switch Indication of hand operated
  • Valve locking device
  • Anti-fly out of stem and antistatic device ,fire safety of seat
  • In case of abnormal rise of pressure in the middle cavity of valve resulted from the medium left there suffered from changes of pipeline pressure or medium temperature, automatic pressure relief of valve seat cab be effected under the pressure of the medium it self.
  • Pneumatic actuator: Single Acting or Double Acting, IP65, Air Pressure:0.6 to 0.8Mpa. Outdoor type or Explosion-proof type or requirements

Specifications:

Material of main Parts Body Stainless Steel SS304/316/304L/316L
Ball SS304/SS316
Shaft A182 F6 or F304/F316
Seat PTFE or RPTFE
Bolt /Nut SS304/SS316
Operation Lever, Gear Box, Pneumatic, Electric
Working Temperature -5 to 210 Celsius degree
Working Medium Water, Oil, Gas, H2SO

Dimension:

model L T f D C B A H N – M Actuator
DN15 130 14 2 95 65 45 163 164 4-Φ14 AT63
DN20 140 15 2 105 75 54 163 170 4-Φ14 AT63
DN25 150 16 2 115 85 65 163 175 4-Φ14 AT63
DN32 165 16 2 135 100 78 163 184 8-Φ18 AT63
DN40 180 17 2 145 110 85 214 214 8-Φ18 AT75
DN50 200 18 2 160 125 100 252 225 8-Φ18 AT88
DN65 220 18 2 180 145 120 252 253 8-Φ18 AT88
DN80 250 18 2 195 160 135 316 296 8-Φ18 AT115
DN100 280 20 2 215 180 155 354 322 8-Φ18 AT125
DN125 320 22 3 245 210 185 418 408 8-Φ18 AT145
DN150 360 24 3 280 240 265 450 465 8-Φ22 AT160
DN200 400 26 3 335 295 265 530 552 12-Φ22 AT210
