Inconel Trunnion Mounted Ball Valve
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description

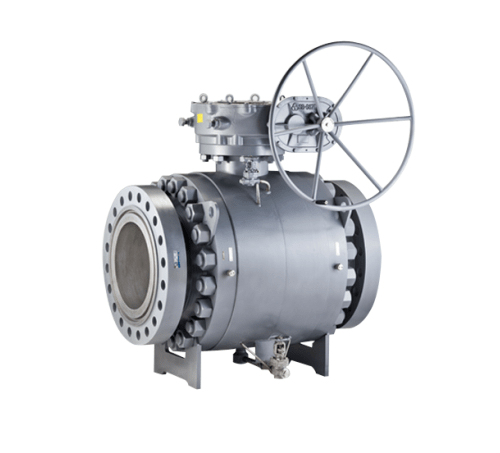

Inconel Trunnion Mounted Ball Valve
Body: Inconel 600, Inconel 625
Ball: SS304, SS316
End Cap: CF8, CF8M
Stem: SS316, SS304
Seat: PTFE, RPTFE, PPL
Packing: PTFE, RPTFE, PPL
Nominal Size: 2″ to 24″
Nominal Pressure: PN1.0 to 10MPa, Class150 to Class600
Design and Manufacture Standard: API 6D, API 600
Face to Face Dimension: ANSI B16.10, ASME B16.10
Flange End Dimension: ANSI B16.5, ASME B16.5, DIN, JIS
Inspection and Test: API 598, API 6D

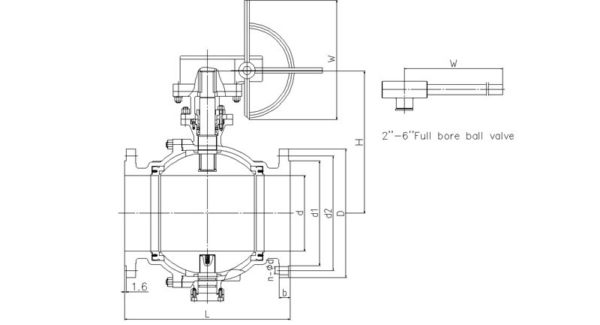

Dimensions
| NPS | in | 2 | 2 1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| d | mm | 51 | 64 | 76 | 102 | 152 | 203 | 254 | 305 | 337 | 387 | 432 | 483 | 584 |
| L(RF) | mm | 216 | 241 | 283 | 305 | 403 | 502 | 568 | 648 | 762 | 838 | 914 | 991 | 1143 |
| d1 | mm | 92 | 105 | 127 | 157 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
| d2 | mm | 127 | 149 | 168.5 | 200 | 270 | 330 | 387.5 | 451 | 514.5 | 571.5 | 628.5 | 686 | 813 |
| D | mm | 165 | 190 | 210 | 254 | 318 | 381 | 445 | 521 | 584 | 648 | 711 | 775 | 914 |
| b | mm | 23 | 26 | 29 | 32 | 37 | 42 | 48 | 51 | 54 | 58 | 61 | 64 | 70 |
| n-Фd | mm | 8-19 | 8-22 | 8-22 | 8-22 | 12-22 | 12-25 | 16-29 | 16-32 | 20-32 | 20-35 | 24-35 | 24-35 | 24-41 |
| H | mm | 176 | 200 | 215 | 252 | 330 | 448 | 505 | 556 | 620 | 700 | 750 | 805 | 1110 |
| W | mm | 350 | 400 | 400 | 500 | 1000 | 300 | 350 | 400 | 500 | 500 | 500 | 500 | 500 |
