Incoloy 3 Piece Ball Valve
€360.00 – €2,451.00
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Incoloy 3 Piece Ball Valve
Body: Incoloy 800, Incoloy 800H, Incoloy 825
Ball: SS304, SS316
End Cap: CF8, CF8M
Stem: SS316, SS304
Seat: PTFE, RPTFE, PPL
Packing: PTFE, RPTFE, PPL
Nominal Size: DN15 to DN100
Nominal Pressure: PN1.0 to 10MPa, Class150 to Class600
Design and Manufacture Standard: API 6D
Face to Face Dimensions: ANSI B16.10
Flange End Dimension: ANSI B16.5
Butt Welded Dimensions: ANSI B16.25
Inspection and Test: API598

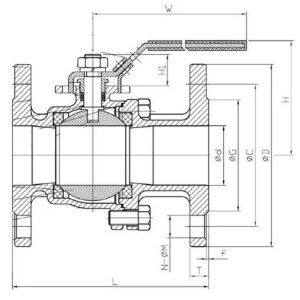

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm
| Size | d | D | C | G | f | T | N-M | L | H | H1 | W | W1 | Kg |
| 1/2? | 15 | 95 | 65 | 45 | 2 | 16 | 4-14 | 115 | 72 | 16.5 | 123 | 6.5 | 2.5 |
| 3/4? | 20 | 105 | 75 | 58 | 2 | 18 | 4-14 | 120 | 76 | 16.5 | 123 | 6.5 | 3.5 |
| 1? | 25 | 115 | 85 | 68 | 2 | 18 | 4-14 | 125 | 92 | 23.5 | 183 | 9.5 | 4.5 |
| 1 1/4? | 32 | 140 | 100 | 78 | 2 | 18 | 4-18 | 130 | 95 | 21.0 | 153 | 8 | 6.0 |
| 1 1/2? | 40 | 150 | 110 | 88 | 3 | 18 | 4-18 | 140 | 125 | 37.5 | 246 | 12 | 7.0 |
| 2? | 50 | 165 | 125 | 102 | 3 | 20 | 4-18 | 150 | 132 | 37.5 | 246 | 12 | 10.0 |
| 2 1/2? | 65 | 185 | 145 | 122 | 3 | 18 | 4-18 | 170 | 166 | 47.0 | 285 | 16 | 14.5 |
| 3? | 80 | 200 | 160 | 138 | 3 | 20 | 4-18 | 180 | 176 | 47.0 | 285 | 16 | 19.0 |
| 4? | 100 | 220 | 180 | 158 | 3 | 20 | 8-18 | 190 | 189 | 47.0 | 385 | 16 | 32.0 |
Additional information
| Body Material | Incoloy |
|---|---|
| Class | 150, 300 |
| Size | 1", 2", 3", 4" |
