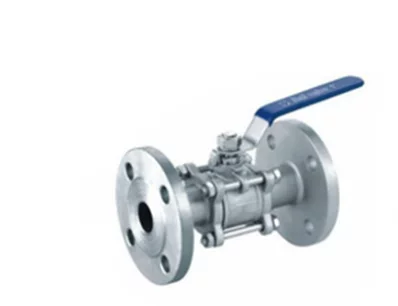

Hastelloy C276/B3 3 Piece Ball Valve
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Hastelloy C276/B3 3 Piece Ball Valve
Body: Hastelloy C276, Hastelloy G30, Hastelloy B, Hastelloy C22, Hastelloy C4
Bonnet: Hastelloy C276, Hastelloy G30, Hastelloy B, Hastelloy C22, Hastelloy C4
Seat: PTFE, RPTFE, PPL
Seal: PTFE, RPTFE, PPL
Nominal Size: 2″ to 8″
Nominal Pressure: PN1.0 to 10MPa, Class150 to Class600
Design and Manufacture Standard: API 6D, API 600
Face to Face Dimension: ANSI B16.10, ASME B16.10
Flange End Dimension: ANSI B16.5, ASME B16.5, DIN, JIS
Inspection and Test: API 598, API 6D
Dimensions
|
Size |
L |
D |
D1 |
D2 |
H |
b-f |
z x Φd |
|
15 |
130 |
95 |
65 |
45 |
99.2 |
16-2 |
4-Φ14 |
|
20 |
140 |
105 |
75 |
55 |
100 |
16-2 |
4-Φ14 |
|
25 |
150 |
115 |
85 |
65 |
115 |
16-2 |
4-Φ14 |
|
32 |
165 |
135 |
100 |
78 |
1169 |
18-2 |
4-Φ18 |
|
40 |
180 |
145 |
110 |
85 |
133 |
18-3 |
4-Φ18 |
|
50 |
200 |
160 |
125 |
100 |
140 |
20-2 |
4-Φ18 |
|
65 |
220 |
180 |
145 |
120 |
155 |
22-2 |
4-Φ18 |
|
80 |
241 |
195 |
160 |
135 |
182 |
22-2 |
8-Φ18 |
|
100 |
280 |
215 |
180 |
155 |
208 |
20-2 |
8-Φ18 |
|
125 |
320 |
245 |
210 |
185 |
249 |
22-2 |
8-Φ18 |
|
150 |
360 |
280 |
240 |
210 |
277 |
24-2 |
8-Φ23 |
|
200 |
400 |
335 |
295 |
265 |
328 |
26-2 |
12-Φ23 |
|
250 |
533 |
405 |
355 |
320 |
350 |
30-2 |
12-Φ25 |
Additional information
| Body Material | Hastelloy C276 |
|---|---|
| Class | 150 |
| Size | 1", 2", 4" |
