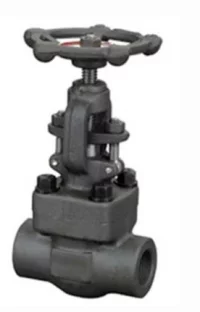

Forged Steel Globe Valve

23.87351.02
In Stock
Custom Enquiry
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A

Description

Forged Steel Globe Valve

1. Body Material: A105, F22, F304L, F316L

2. Disc: A105, F22, F304L, F316L

3. Stem: F6, F304, F304L, F316L

4. Bonnet: A105, F22, F304L, F316L

5. Gland Flange: A105, F22, F304L, F316L

6. Stem Nut: A276 410

7. Handwheel: A197

End Connections: Buttweld, Socketweld, Flanged

Nominal Diameter: DN15 to DN50

Nominal Pressure: Class800 to Class2500

Design and Manufacture Standard:  API602, BS5352, ASME B16.34

Face to Face Dimensions: ASME B16.10

Socketweld Ends: ASME B16.11

Screwed Ends: ASME B1.20.1

Flanged Ends: ASME B16.5

Inspection and Test: API598

Dimensions                                                                    Unit: mm

Class800

DN L d W H
15 79 10 100 158
20 92 13 100 158
25 111 17.5 125 192
32 120 23 160 227
40 152 28.5 160 240
50 172 35 180 279

Additional information

Body Material

ASTM A105N, ASTM A182 F304, ASTM A182 F316

Class

1500, 2500, 800

Size

1 1/2", 1", 1/2", 2", 3/4"
