Forged Floating Ball Valve

€28.50 – €36.00
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: , ,

Description

Forged Floating Ball Valve:

Pressure rating and size:
 PN10 to PN160,ANSI Class150 to Class 2500, JIS 10K,20K
 DN50 to DN2000
 2″ to 80″
 50A to 2000A
Material:
Body : WCB, CF8, CF8M, A105
Bonnet : WCB, CF8, CF8M, A105
Ball : A105, SS304, SS316
Stem : F6a, SS304, SS316
Seat : EPDM, Metal, Viton, PTFE, NBR
Special material on request.
Operated type
Pneumatic, Gear, Electric, Manual
Structure:
Floating or trunnion mounted ball, full or reduced bore, 2 pcs,3 pcs
Flange connection:
EN1092 , ANSI B16.5, JIS
Bore type:
Full bore,Reduced bore
Type
Flange RF, RTJ
Maximum working temperatures:
Nitril: 80°C
NBR: 110°C
EPDM: 110°C
PTFE: 150°C, Metal seat for high temperature

Class 150

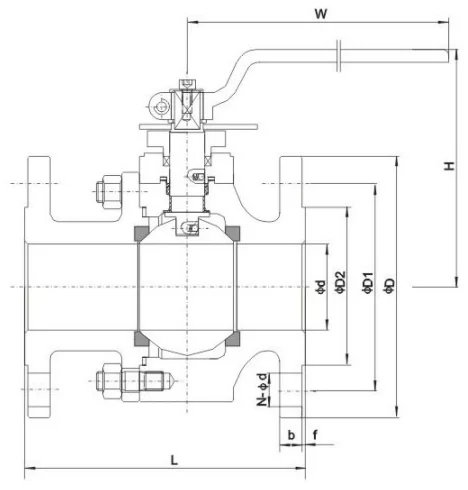

Size

DN (mm)

 d Flanged Raised Face Flange W H
L(RF) L(RTF) D D1 D2 f b N-ф
15 13 108 – 90 60.5 35 2 9 4-ф16 140 78
20 19 117 – 100 70 43 2 10 4-ф16 140 82
25 25 127 – 110 79.5 51 2 11 4-ф16 140 95
32 32 140 – 115 89 64 2 11 4-ф16 180 100
40 38 165 – 125 98.5 73 2 13 4-ф16 180 128
50 50 178 191 150 120.5 92 2 14.5 4-ф19 200 137
80 75 203 216 190 152.5 127 2 17.5 4-ф19 300 148
100 100 229 241 230 190.5 157 2 22.5 8-ф19 650 223
150 150 394 406 280 241.5 216 2 24 8-ф22 800 278
200 201 457 470 345 298.5 270 2 27 8-ф22 1000 336

Class 300

Size

DN (mm)

 d Flanged Raised Face Flange W H
L(RF) L(RTF) D D1 D2 f b N-ф
15 13 140 – 140 95 66.5 2 13 4-ф16 140 78
20 19 152 – 152 115 82.5 2 14.5 4-ф19 140 82
25 25 165 – 165 125 89 2 16 4-ф19 140 95
32 32 178 – 178 135 98.5 2 17.5 4-ф19 180 100
40 38 190 – 190 155 114.5 2 19.5 4-ф22 180 128
50 50 216 232 216 165 127 2 21 8-ф19 200 137
80 75 283 298 283 210 168.5 2 27 8-ф22 300 148
100 100 305 321 305 255 200 2 30.5 8-ф22 650 223
150 150 403 419 457 320 270 2 35 12-ф22 800 278
200 201 502 518 521 380 330 2 40 12-ф25 1000 336

Additional information

Body Material

A105N
Class

600
Size

1", 1/2", 3/4"
