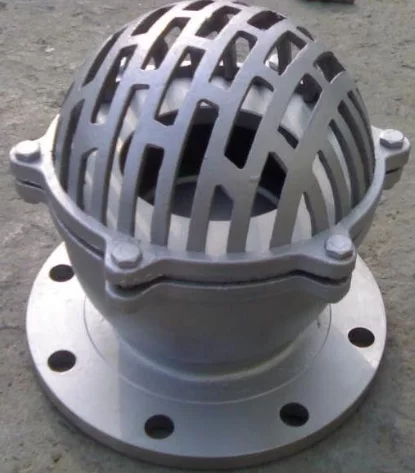

Foot Valve
€21.81 – €707.90
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Foot Valve
Body: Cast Iron, Ductile Iron, SS304, SS316
Disc: Carbon Steel, Stainless Steel, SS304, SS316
Seat: F304, F316
Mesh: SS304
Nominal Size: DN50 to DN300
Nominal Pressure: PN16, Class150
Dimensions Unit: mm
DN | D | D1 | D2 | b-f | z-*d | hO | H |
50 | 140 | 110 | 90 | 16-3 | 4-14 | 17 | 142 |
65 | 160 | 130 | 110 | 16-3 | 4-14 | 25 | 180 |
80 | 185 | 150 | 125 | 18-3 | 4-18 | 32 | 197 |
100 | 205 | 170 | 145 | 18-3 | 4-18 | 40 | 230 |
125 | 235 | 250 | 175 | 20-3 | 8-18 | 43 | 270 |
150 | 260 | 225 | 200 | 20-3 | 8-18 | 38 | 297 |
200 | 315 | 280 | 255 | 22-3 | 8-18 | 65 | 382 |
250 | 370 | 335 | 310 | 24-3 | 12-18 | 84 | 460 |
300 | 435 | 395 | 262 | 24-4 | 12-23 | 90 | 530 |
Additional information
Body Material | Cast iron, Ductile Iron, SS304, SS316 |
---|---|
Class | 150/PN16 |
Size | 10", 12", 2 1/2", 2", 3", 4", 5", 6", 8" |
