F347 Gate Valve
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description

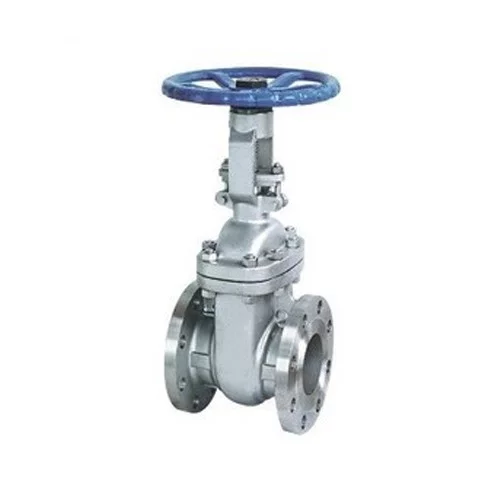

F347 Gate Valve
Body: F347, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Gate: F347, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Trim: SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20
Gland Packing: Graphite, PTFE
Nominal Size: DN15 to DN500
Nominal Pressure: Class150 to Class600
End Connections: Flanged, Socketweld, Buttweld
Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated
Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414
Face to Face Dimensions: ANSI B16.10, API 6D
Flanged End Dimension: ANSI B16.5, MSS-SP-44 to API605
Inspection and Test: API 598, API 6D
Dimensions Unit: mm
DN | L | d | H | H1 | W | W1 |
15 | 140 | 14 | 198 | – | 120 | – |
20 | 152 | 19 | 215 | – | 140 | – |
25 | 165 | 25 | 245 | – | 160 | – |
32 | 178 | 32 | 306 | – | 180 | – |
40 | 190 | 38 | 400 | – | 200 | – |
50 | 216 | 51 | 420 | – | 200 | – |
65 | 241 | 64 | 446 | – | 200 | – |
80 | 283 | 76 | 537 | – | 250 | – |
100 | 305 | 102 | 619 | 650 | 280 | 310 |
125 | 381 | 127 | 722 | 750 | 300 | 310 |
150 | 403 | 152 | 806 | 835 | 350 | 310 |
200 | 419 | 203 | 1000 | 1030 | 400 | 310 |
250 | 457 | 254 | 1240 | 1280 | 450 | 310 |
300 | 502 | 305 | 1425 | 1460 | 500 | 310 |
350 | 762 | 337 | 1585 | 1620 | 500 | 460 |
400 | 838 | 387 | 1790 | 1830 | 600 | 460 |
450 | 914 | 438 | 1960 | 2000 | 650 | 460 |
500 | 991 | 489 | 2158 | 2220 | 750 | 460 |
