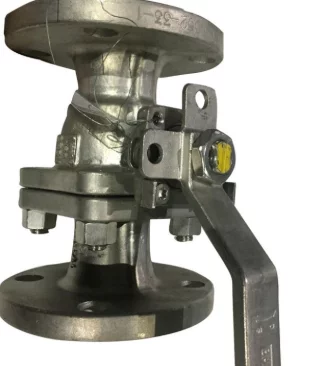

F347 Floating Ball Valve

In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
Categories: , , ,

Description

F347 Floating Ball Valve

Body: F347, Titanium, CF8, CF8M, Cast Iron, Carbon Steel

Ball: F347, Titanium, CF8, CF8M, Cast Iron, Carbon Steel

Stem: SS304, SS316

Gland Nut: SS304, SS316

Seat: PTFE, RTFE, PPL

Seal: PTFE

Packing: PTFE, Graphite

Nominal Size: 2″ to 8″

Nominal Pressure: Class 150 to Class 2500, PN16 to PN63

End Connection: Flanged

Handle: Lever Handle, Locking Device Handle

Operation: Manual, Pneumatic, Electric Actuated

Design and Manufacture Standard: ASME B16.34, API 6D

Face to Face Dimension: DIN3202, EN1266, ANSI B16.10

Flanged End Dimension: ANSI B16.5

Buttweld Dimension: ANSI B16.25

Inspection and Testing: API 598

Dimensions

NPS in 2 2 1/2 3 4 5 6 8
d mm 51 64 76 102 127 152 203
L(RF) mm 216 241 283 305 381 403 502
d1 mm 92 105 127 157 186 216 270
d2 mm 127 149 168.5 200 235 270 330
D mm 165 190 210 254 279 318 381
b mm 23 26 29 32 35 37 42
n-Фd mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25
H mm 140 160 180 208 220 290 300
W mm 200 290 290 360 600 800 1000
