Description

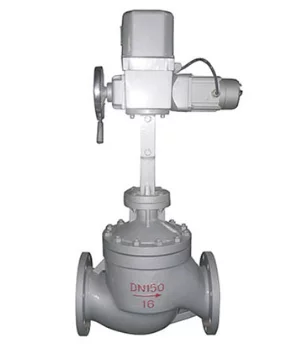

Electric Single Seat Control Valve

Body: WCB, WCC, WC6, SS304,SS316

Bonnet: WCB, WCC, WC6, SS304,SS316

Seat: SS304, SS316, SS316L

Packing: PTFE, Flexible Graphite

Bellows: SS304, SS316, SS316L

Stem: SS304, SS316, SS316L

Nominal Size: DN20 to DN200

Nominal Pressure: PN16, PN25, PN64

Voltage: AC220V, 50HZ

Input Signal: DC4 to 20mA, 0 to 10V, 0 to 10mA

Output Signal: DC 4 to 20mA

Acting Type: ON/OFF Type, Regulating Type

Protection Class: IP55, IP65, IP67, IP68

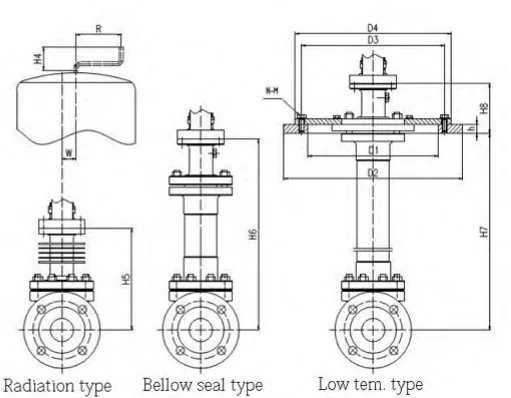

Dimensions

DN/Inch DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200
3/4″ 1″ 11/4″ 11/2″ 2″ 11/2″ 3″ 4″ 5″ 6″ 8″
L 194 197 200 235 267 292 317 368 420 473 600
A 225 225 255 255 255 255 255 255 310 310 310
H1 128 137 148 152 159 218 230 238 264 331 346
H2 373 373 495 495 495 535 535 535 725 725 725
H3 65 70 70 85 90 102.5 107.5 125 125 172.5 180
H4 87 87 90 90 90 90 90 90 90 90 90
H5 208 208 224 228 228 334 334 342 408 453 482
H6 338 338 402 402 405 627 628 635 698 702 728
H7 700
H8 88 88 88 88 88 94 94 94 110 110 110
W 28 28 45 45 45 45 45 45 60 60 60
R 80 80 100 100 100 100 100 100 160 160 160
h 15 15 15 15 15 18 18 18 20 20 20
D1 230 230 250 270 305 342 375 430 490 556 665
D2 310 310 335 355 390 430 465 520 585 660 770
D3 260 260 285 305 340 370 405 460 525 580 700
D4 290 290 315 335 370 400 435 490 555 630 740
N-M 8-M12 8-M12 8-M12 8-M14 8-M14 10-M14 10-M14 12-M16 14-M16 16-M16 18-M16
Weight,kg 17 19 26 35 42 57 64 79 144 150 259

Additional information

Body Material

SS316, Wcb

Class

150, 300

Size

1", 2", 3", 4", 5"
