Electric Cage Type Control Valve

€1,655.00 – €6,134.00
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: , ,

Description

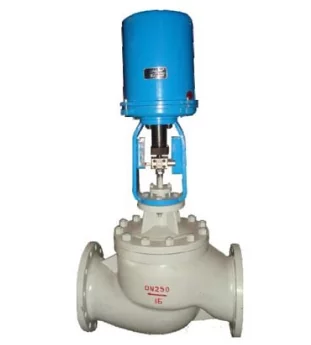

Electric Cage Type Control Valve

Body: WCB, WCC, WC6, SS304, SS316

Bonnet: WCB, WCC, WC6, SS304, SS316

Plug: SS304, SS316, SS316L

Seat: SS304, SS316, SS316L

Packing: PTFE, RPTFE, Graphite

Sealing Ring: PTFE

Stem: SS304,SS316, SS316L

Nominal Diameter: DN25 to DN350

Nominal Pressure: PN16 to PN64, Class150 to Class300

Technical Specifications

Nominal Diameter 25 32 40 50 65 80 100 125 150 200 250 300 350
CV Linear 11 17.6 27.5 44 69 110 176 275 440 690 1000 1650 2160
Equal-Percent 10 16 25 40 63 100 160 250 400 630 900 1500 2000
Rate Travel 16 25 40 60 100
Nominal Pressure (MPa) MPa 1.6,2.5,4.0,6.4(6.3)/2.0,5,11.0,15.0
Bar 16,25,40,64(63)20,50,110,150
Lb ANSI: Class 150, class 300, class 600,class 900
Inherent Flow Characteristic Equal percentage, Linear
Inherent Adjust Rate(R) 50
Electricity Supply 220V 50HZ
Input Signal 4  to 20mA
Feedback Signal 4  to 20mA
Temperature(°C) Normal Temperature -20 to 200, -40 to 250, -60 to 250
Radiator -40 to 450, -60 to 450
High Temperature 450 to 560(High Temperature)
Low Temperature -60 to -100, -100 to  -200, -200 to  -250
Cutting-Off -40 to 150(PTFE-PTFE), -60 to 200(PTFE-REINFORCED)

Dimensions

DN(mm) 25 32 40 50 65 80 100 125 150 200 250 300
L(mm) PN16 185 205 220 254 275 300 350 410 451 600 670 735
PN40 200 210 235 267 292 317 368 425 473 615 685 750
PN64 210 220 251 286 311 337 394 440 508 630 700 765
H1(mm) PN16 58 68 73 80 90 98 108 123 140 168 203 230
H1(mm) PN40 58 68 73 80 90 98 115 135 150 188 223 255
H1(mm) PN64 68 75 83 88 100 105 125 148 170 203 235 265
Equipped with PSL H Normal Temp. 614 630 635 640 712 739 761 930 940 960 1165 1185
High Temp. 765  788 790 800 895 940 970 1150 1190 1220 1470 1490
D 176 225
Equipped with 361L H Normal Temp. 665 725 731 755 957 980 1028 1329 1348 1423 1621 1734
High Temp. 820 870 895 1125 1150 1195 1410 1586 1667 1884 2000
D 225 310
Cryogenic Type -196℃ H2 500 600 700
H 1120 1310 1320 1460 1478 1497 1850 1860 1900

Additional information

Body Material

SS316, Wcb
Class

150, 300
Size

1", 2", 3", 4", 5"
