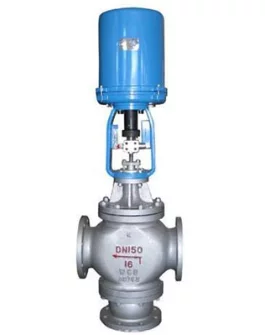

Electric 3 Way Control Valve

2,138.009,954.00
In Stock
Custom Enquiry
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service

Description

Electric 3 Way Control Valve

Body: WCB, LCB, SS304, SS316, SS316L

Bonnet: WCB, LCB, SS304, SS316, SS316L

Lining Material: PO, PE, PP F46, F4, PFA

Bellows Material: PTFE, PFA

Stem Material: 17-4PH ASTM A276 304

Nominal Diameter: DN25 to DN300

Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class300

Input Signal: 4-20mADC, 1-5VDC

Power Supply: AC220V 50HZ

Flange Standard: According to HG20592-97, ANSI, JIS, DIN and other standards

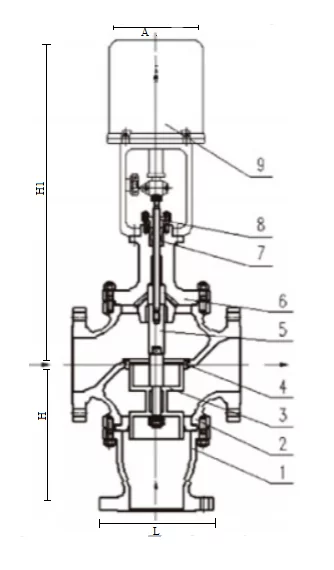

Dimension

DN 25 32 40 50 65 80 100 125 150 200 250 300
L PN16 185 200 220 250 275 300 350 410 450 550 670 770
PN40 190 210 230 255 285 310 355 425 460 560 740 803
PN64 200 200 240 265 295 320 370 440 475 570 752 819
H1 135 152 165 180 200 220 222 265 322 362 508 563
A 225 310
H Normal atmospheric temperature 555 561 660 675 863 868 872 905 920 950 1203 1265
H Medium temperature 707 709 812 827 1027 1032 1036 1120 1135 1165 1485 1557
Weight
(PN64 Normal atmospheric temperature)
50 55 70 78 110 120 150 180 310 410 650 810

Additional information

Body Material

SS316, Wcb

Class

150, 300

Size

1", 2", 3", 4", 5", 6"
