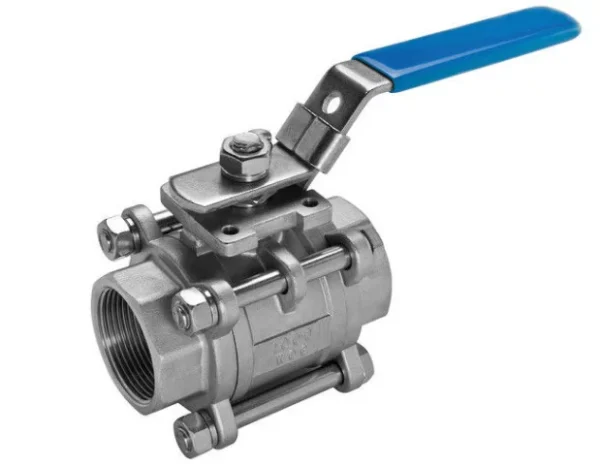

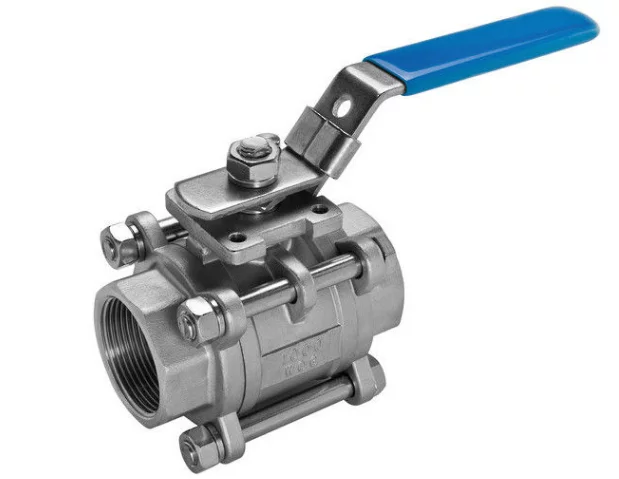

Duplex 1B 3 PC Ball Valve

€456.00 – €1,498.00
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: , , ,

Description

Duplex 1B 3 PC Ball Valve

1. Body: Duplex 1B, Alloy 20,Super Duplex, Hastelloy C276/B3, Inconel, F347, F44, F317L, F321, Titanium, Monel

2. Ball: SS304, SS316

3. End Cap: CF8, CF8M

4. Bolting: A193-B8

5. Ball Seat: PTFE

6. Packing: PTFE

7. Stem: SS304, SS316

8. Gland: SS304

9. Handle: SS304

10. Nut: A193-B8

Nominal Size: DN6 to DN100

Nominal Pressure: 1000WOG/1000PSI, 1.6 to 6.4Mpa

Medium Temp: -20° C to +180° C

Ambient Temp: -20° C to +60° C

Connection: NPT, BSP, BSPT, Flanged

Port: Full Port, Reduced Port

Handle: Lever Handle, Locking Device Handle

Operation: Manual, Pneumatic, Electric Actuated

Design Standard: ASME B16.34

Inspection and Test: API 598

Dimension

Size NPS 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
DN 6 10 15 20 25 32 40 50 65 80 100
L 65 65 75 85 95 115 125 150 175 210 260
D 11.6 13 15 20 25 32 38 50 65 80 100
H 44 44 46 52 57 80 88 94 130 140 165

Additional information

Body Material

Duplex
Class

1000PSI
Connection Type

Threaded or Welded
Size

1", 2", 3/4"
