Double Orifice Kinetic Air Valve

€61.17 – €809.97
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: ,

Description

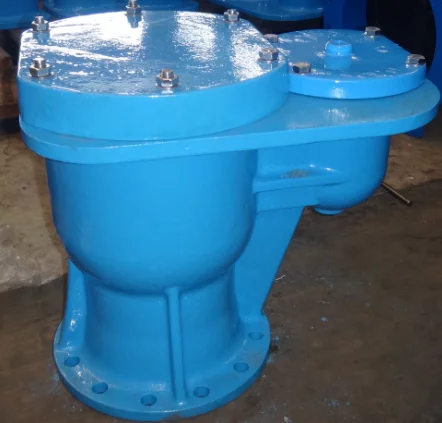

Double Orifice Kinetic Air Valve

Body: Cast iron, Ductile Iron, Stainless Steel

Bonnet: Cast iron, Ductile Iron, Stainless Steel

Cap : Cast iron, Ductile Iron

Float Ball: Stainless Steel

Stem: Stainless Steel

Stem Yoke: Stainless Steel

Plug: Stainless Steel

Gasket: NBR, EPDM

Top Plug: NBR+Stainless Steel

Plug Sleeve: Stainless Steel

Nominal Diameter: DN40 to DN200

Nominal Pressure: Class150 to Class300, PN16 to PN40

Design and Manufacture Standard: DIN3352

Flanged End Dimension: DIN2501

Inspection and Test: BS6755

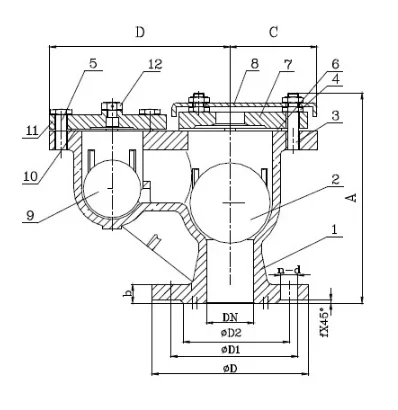

Dimensions                                                                                                Unit: mm

PN16

DN L H
25 147 185
40 224 187
50 273 214
65 273 214
80 283 244
100 302 270
125 353 323
150 353 323
200 433 401
250 491 450

Additional information

Body Material

Cast iron, Ductile Iron
Class

150/PN16, PN10
Size

1 1/2", 2", 3", 4", 6", 8"
Connection Type

Flanged, Screwed
