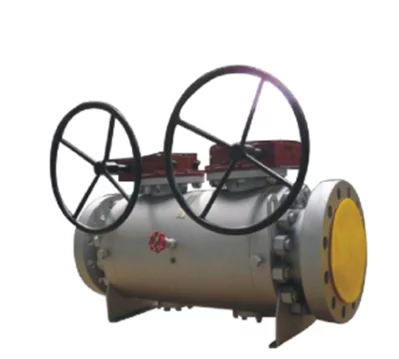

Double Block and Bleed Ball Valve

€18,220.00 – €283,020.00
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: ,

Description

Double Block and Bleed Ball Valve

Size Range: 2″ to 48″

Pressure Rating: ASME CL, 150, 300, 600

Temperature Range: -196°C to 650°C

Applicable Standards:

Ball  Valve design according to API6D, BS5351, ASME B16.34

Face to face ASME B16.10, AP6D

End Flanges ASME B16.5/ASME B16.47

Butt welded ends ASME B16.25

Fire Safety API607, API6A

Inspection and test API 598, API6D

Dimension:

NPS Φq L ΦD ΦK ΦR B f ΦP E F N-Φ
10 252 1380 545 469.9 362 69.9 7.92 323.9 7.92 11.91 16-38.1
12 303 1550 610 533.4 419 79.4 7.92 381 7.92 11.91 20-38.1
20 471 2050 855 749.3 648 108 12.7 584.2 12.7 19.84 20-54
24 570 2520 1040 901.7 772 139.7 15.88 692.1 15.88 26.97 20-66.7

Additional information

Body Material

F51
Class

900
Size

10", 12", 16", 20", 24"
