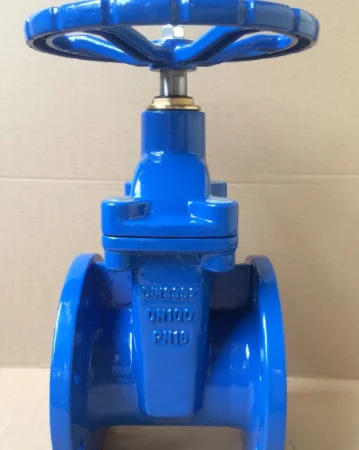

DIN Soft Seat Gate Valve

€54.00 – €30,940.00
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: ,

Description

DIN Soft Seat gate Valve

1. Body Material: Cast Iron, Ductile Iron

2. Disc: Cast Iron, Ductile Iron

3. Bonnet: Cast Iron, Ductile Iron

4. Stem: Stainless Steel

5. O-Ring: NBR

6. Gland: Ductile Iron

7. Operation: Manual Operated, Gear Operated

8. End Connections: Flanged, Buttweld, Socketweld

Nominal Diameter: DN50 to DN300

Nominal Pressure: PN10, PN16, PN25

Design and Manufacture: DIN3352 F4, DIN3352 F5

Face to Face Dimensions: DIN 3202, ISO5752

Flanged End Dimensions: DIN2501

Test and Inspection: DIN3220

Dimensions                                                                                                    Unit: mm

PN10

DN L H D C
50 178 265 165 178
65 190 297 185 178
80 203 313 200 203
100 229 359 220 254
125 254 451 250 254
150 267 486 285 305
200 292 544 340 356
250 330 621 395 405
300 356 730 445 457

PN16

DN L H D C
50 178 265 165 178
65 190 297 185 178
80 203 313 200 203
100 229 359 220 254
125 254 451 250 254
150 267 486 285 305
200 292 544 340 356
250 330 621 405 405
300 356 730 460 457

Additional information

Body Material

Ductile Iron
Class

150/PN16
Connection Type

Buttweld, Flanged, Socket weld
Size

10", 12", 14", 16", 18", 2 1/2", 2", 20", 24", 28", 3", 32", 36", 4", 40", 48", 6", 8"
