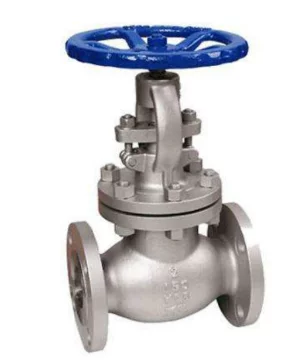

DIN Globe Valve

€37.00 – €560.00
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: ,

Description

DIN Globe Valve

1. Body Material: Cast Iron, Ductile Iron

2. Disc: Cast Iron, Ductile Iron

3. Bonnet: Cast Iron, Ductile Iron

4. Stem: Stainless Steel

5. O-Ring: NBR

6. Gland: Ductile Iron

7. Operation: Manual Operated, Gear Operated

8. End Connections: Flanged, Buttweld, Socketweld

Nominal Diameter: DN50 to DN300

Nominal Pressure: PN10, PN16, PN25

Design and Manufacture: DIN3352 F4, DIN3352 F5

Face to Face Dimensions: DIN 3202, ISO5752

Flanged End Dimensions: DIN2501

Test and Inspection: DIN3220

Dimensions                                                                                             Unit: mm

PN16
DN L W H
15 130 120 240
20 150 140 260
25 160 160 276
32 180 160 285
40 200 180 300
50 230 200 305
65 290 200 354
80 310 250 402
100 350 250 437
125 400 300 496
150 480 350 541
200 600 400 699
250 730 450 815
300 850 500 914
350 980 550 1189
400 1100 600 1350

Additional information

Body Material

Cast iron
Class

150/PN16
Connection Type

Buttweld, Flanged, Socket weld
Size

1 1/2", 10", 12", 2 1/2", 2", 3", 4", 5", 6", 8"
