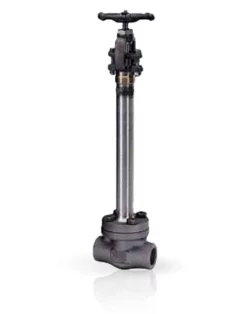

Cryogenic Long Stem Globe Valve
€58.00 – €5,979.00
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Cryogenic Long Stem Globe Valve
Body: F304, F316, SS304, SS316
Bonnet: Stainless Steel
Stem: Stainless Steel
Packing: PTFE
Disc face ring: PTFE
Nominal Diameter: DN10 to DN100
Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class300
Applicable medium: O2, N2, Ar, LNG
Applicable temperature: -80℃ to +80℃

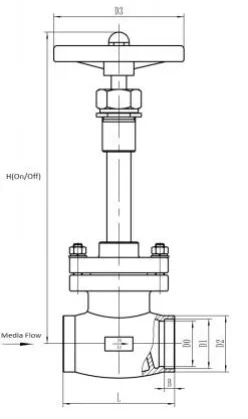

Dimension
DN (mm) | H(on)mm | H(off)mm | L(mm) | D(mm) | D1(mm) | D2(mm) | b(mm) |
10 | 255 | 245 | 61 | 65 | 10 | 14.5 | 6 |
15 | 255 | 246 | 61 | 65 | 15 | 18.5 | 6 |
20 | 302 | 289 | 81 | 80 | 22 | 24.5 | 6 |
25 | 302 | 289 | 81 | 80 | 26 | 28.5/32.5 | 6 |
32 | 355 | 340 | 102 | 100 | 32 | 38.5 | 9 |
40 | 356 | 340 | 102 | 100 | 42 | 45.5 | 9 |
50 | 391 | 370 | 127 | 137 | 54 | 58 | 10 |
65 | 435 | 413 | 150 | 205 | 68 | 71 | 10 |
80 | 486 | 516 | 182 | 202 | 84 | 89 | 17 |
100 | 564 | 531 | 200 | 213 | 104 | 109 | 15 |
Additional information
Body Material | SS304 |
---|---|
Connection Type | Buttweld, Flanged, Socket weld |
Class | 150, 300, PN40 |
Size | 1 1/2", 1 1/4", 1", 1/2", 1/4", 10", 2 1/2", 2", 3", 3/4", 3/8", 4", 5", 6", 8" |
