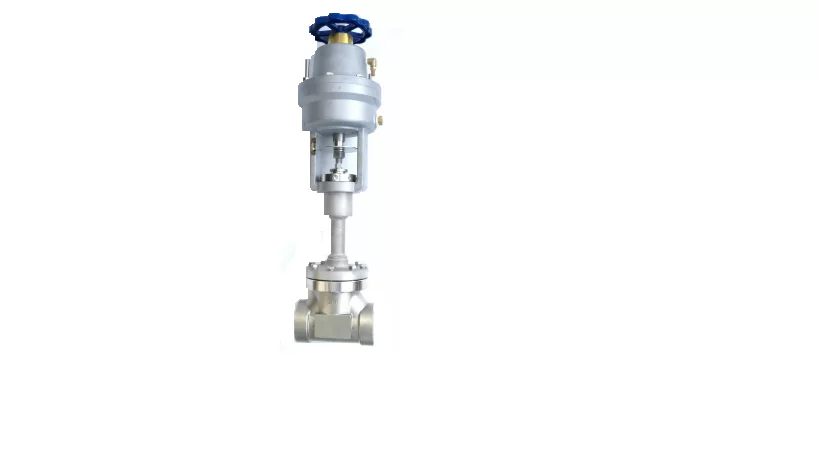

Cryogenic Emergency Cut off Valve
€237.00 – €2,111.00
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Cryogenic Emergency Cut off Valve
Body: SS304, SS316, F304, F316
Bonnet: Stainless Steel
Stem: Stainless Steel
Stuffing: PTFE
Seal ring: PTFE
Nominal Diameter: DN10 to 100mm
Nominal Pressure: PN1.6 to 6.4MPa
Cylinder Source Pressure: PN0.3 to 0.6PMa
Suitable Media: LNG,etc
Suitable Temperature: -196℃ to +70℃
Emergency Cut-off Temperature: +70±5℃

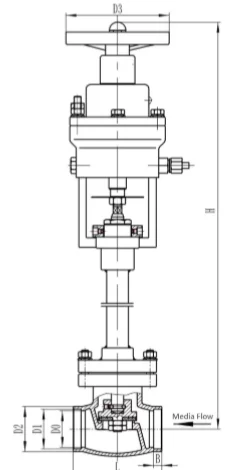

Dimension
DN | H | L | L1 | D | D1 | D2 | b |
10 | 392 | 61 | 151 | 100 | 10 | 14.5 | 6 |
15 | 392 | 61 | 151 | 100 | 15 | 18.5 | 6 |
20 | 448 | 81 | 192 | 100 | 22 | 24.5 | 6 |
25 | 448 | 81 | 192 | 100 | 26 | 28.5/32.5 | 6 |
32 | 505 | 102 | 248 | 100 | 32 | 38.5 | 9 |
40 | 505 | 102 | 248 | 100 | 42 | 45.5 | 9 |
50 | 571 | 127 | 287 | 100 | 54 | 58 | 10 |
65 | 571 | 150 | 287 | 100 | 68 | 71 | 10 |
80 | 623 | 182 | 329 | 100 | 84 | 89 | 17 |
100 | 623 | 200 | 329 | 100 | 104 | 109 | 15 |
Additional information
Body Material | Stainless steel |
---|---|
Class | PN16, PN25, PN40, PN65 |
Connection Type | Buttweld, Flanged, Socket weld |
Size | 1 1/2", 1 1/4", 1", 1/2", 2 1/2", 2", 3", 3/4", 3/8", 4" |
