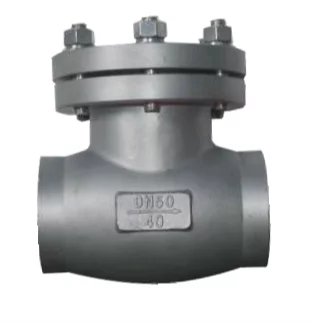

Cryogenic Check Valve

46.00224.00
In Stock
Custom Enquiry
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A

Description

Cryogenic Check Valve

Body: CF8, CF8M, SS304, SS316, F304, F316

Bonnet: Stainless Steel

Disc: Stainless Steel

Stuffing: PTFE

Disc Seal ring: PTFE

Nominal Diameter: DN10 to DN80

Nominal Pressure: PN40MPa

Suitable Media: LO2,LN2,LAr,LNG,LCO2,etc

Suitable Temperature: -80℃ to +80℃

Connection Type: Buttweld, Socketweld, Flanged

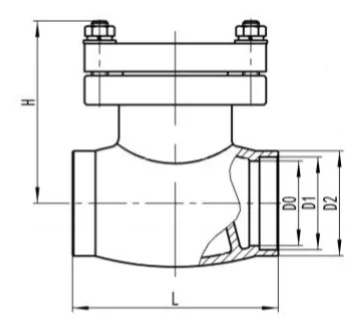

Dimension

DN H L B D0 D1 D2
10 64 195 6 12 15 22
15 64 195 6 15 19 26
20 81 201 6 23 26 34
25 81 201 6 26 33 39
32 102 215 9 35 39 46
40 102 215 10 42 46 52
50 127 267 10 54 58 66
65 150 267 10 68 77 85
80 182 267 10 84 89 100

Additional information

Body Material

CF8

Class

PN40

Connection Type

Buttweld, Flanged, Socket weld

Size

1 1/2", 1 1/4", 1", 1/2", 2 1/2", 2", 3/4", 3/8"
