Description

Balancing Valve

Body: Cast Iron, Ductile Iron

Disc: Ductile Iron, SS304, SS316, Bronze

Shaft: SS410, SS431

Seat Ring: EPDM, NBR

O-Ring: EPDM, NBR

Bushing: PTFE, Bronze

Nominal Diameter: DN50 to DN150

Nominal Pressure: Class150, PN16

Design and manufacturing: DIN EN 13709, DIN 3356

Flanged End Dimensions: EN1092-1 PN25

Face to face Dimensions: EN558-1

Inspection and Test: EN 12266-1

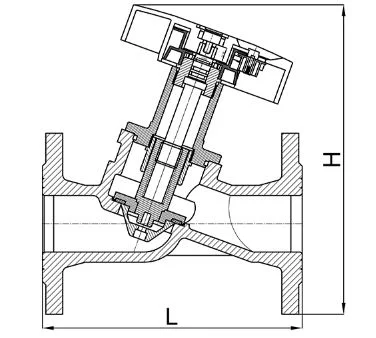

Dimensions                                        Unit: mm

Class150

DN L H
50 230 260
65 290 290
80 310 310
100 350 325
125 400 355
150 480 390

Additional information

Body Material

Cast iron
Class

150/PN16
Size

1 1/2", 10", 12", 2 1/2", 2", 3", 4", 5", 6", 8"
