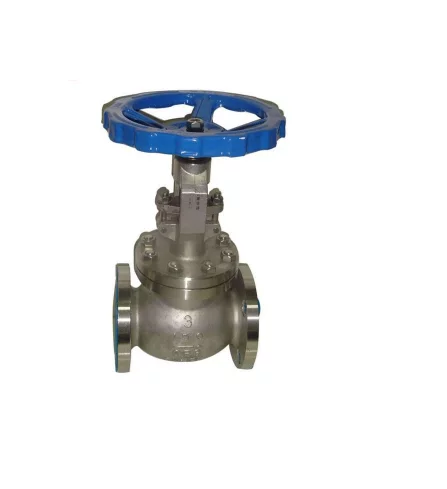

API Globe Valve

€34.00 – €15,267.00
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: ,

Description

API Globe Valve

Body: WCB, CF8, CF8M

Disc: WCB, CF8, CF8M

Stem: F6a, F304, F316

Gasket: Graphite+SS304

Seat Ring: A105+13Cr, A105+Stellite, CF8, CF8M

Packing: Graphite

Nominal Diameter: DN50 to DN500

Nominal Pressure: Class150 to Class1500

End Connections: Flanged, Buttweld, Socketweld

Operation: Handwheel, Electric Actuated, Pneumatic Actuated

Design Standard: API 600, API 603

Face to Face Dimension: ASME B16.0

Flange End Dimension: ASME B16.5

Butt Welding Dimension: ASME B16.25

Inspection and Test: API 598, API 600

Dimensions                                                                                                       Unit: mm

Class150

DN L d W H
15 108 13 100 185
20 117 19 100 190
25 127 25 100 211
32 140 32 135 220
40 165 38 135 240
50 203 51 200 328
65 216 64 250 360
80 241 76 280 373
100 292 102 300 400
125 356 127 350 435
150 406 152 350 528
200 495 203 400 680
250 622 254 450 775
300 698 305 500 880
350 787 337 – –
400 914 387 – –
500 978 488 – –

Additional information

Body Material

SS304, SS316, Wcb
Class

150/PN16
Connection Type

Buttweld, Flanged, Socket weld
Size

1 1/2", 1", 10", 12", 14", 16", 18", 2 1/2", 2", 20", 24", 3", 4", 5", 6", 8"
