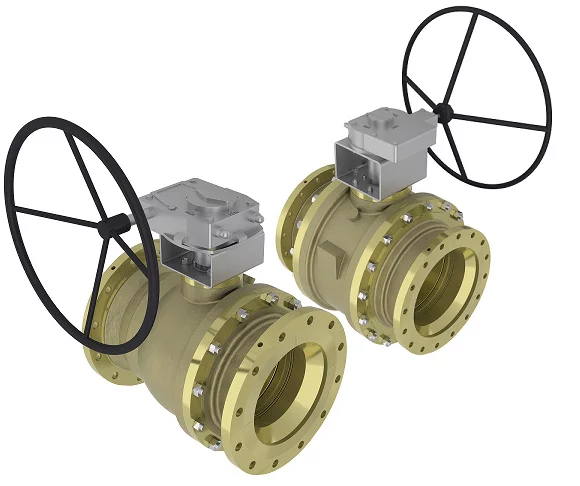

Aluminium Bronze Trunnion Ball Valve
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Aluminium Bronze Trunnion Ball Valve
Body: Aluminium Bronze
Bonnet: Bronze, Aluminium Bronze
Stem: Bronze, Stainless Steel
Seal: PTFE, PFA
Packing: PTFE
Gasket: PTFE
Nominal Size: 6″ to 20″
Nominal Pressure: Class150 to Class300
End Connection: Flanged
Operation: Handle Operated, Gear Operated
Design and Manufacture Standard: API 6D, MSS SP-110
Face to Face Dimension: ASME B16.10
Flanged End Dimension: ASME B16.5
Inspection and Test: API 598, MSS SP-110
Dimensions
| NPS | L | D1 | D2 | D3 | B | f | n-Φd |
| 6 | 394 | 280 | 241.3 | 215.9 | 23.9 | 2 | 8-Φ22 |
| 8 | 657 | 365 | 298.5 | 269.9 | 27 | 2 | 8-Φ22 |
| 10 | 533 | 405 | 362 | 323.8 | 28.6 | 2 | 12-Φ25 |
| 12 | 670 | 485 | 431.8 | 381 | 30.2 | 2 | 12-Φ25 |
| 16 | 762 | 595 | 539.8 | 469.9 | 35 | 2 | 16-Φ29 |
| 20 | 914 | 700 | 635 | 584.7 | 41.3 | 2 | 20-Φ32 |
