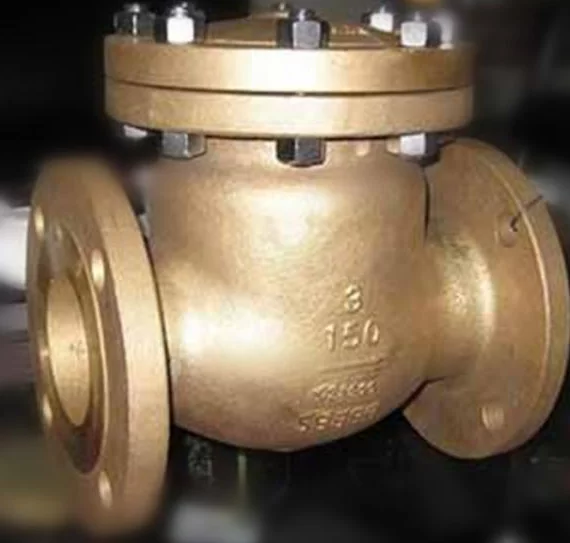

Aluminium Bronze Swing Check Valve

In Stock
Custom Enquiry
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service

Description

Aluminium Bronze Swing Check Valve

Body: Aluminium Bronze( C95800, C83600, C84400, B62)

Disc: Aluminium Bronze, SS304, SS316

Trim: Aluminium Bronze, SS304, SS316

Gland Packing: Graphite, PTFE

Nominal Size: DN40 to DN600

Nominal Pressure: PN 1.0 to 25 Mpa, Class 150 to Class 2500

Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414, BS 5352, DIN 3352

Face to face (end to end): ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202

Flanged connection: 2″ to 24″ , ANSI B16.5, 26″ to 36″,  MSS-SP-44 to API605

Test and inspection: API 598, API 6D, DIN 3230

Butt welded end: ANSI B16.5

Dimensions                                                 Unit: mm

PN16

DN L H
40 180 129
50 200 147
65 240 161
80 260 178
100 300 190
125 350 265
150 400 285
200 500 345
250 600 394
300 700 420
350 800 455
400 900 520
450 1000 565
500 1100 610
600 1300 740
