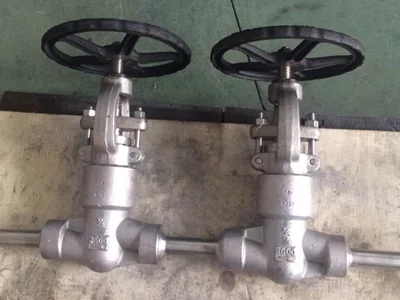

Alloy Pressure Seal Globe Valve
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Alloy Pressure Seal Globe Valve
Body: F11, F22, F51, LF2, A105
Disc: F6a, F6a+Stellite, F51
Stem: SS410
Gasket: F11, F22, F51, SS316L+Graphite
Bonnet: SS304+ Graphite
Packing: Flexible Graphite
Nominal Size: DN15 to DN50
Nominal Pressure: Class800 to Class2500
Design and Manufacture Standard: API 602, BS 5352, ASME B16.34
Socketweld End Connection: ASME B16.11
Threaded End Connection: ASME B1.20.1
Buttweld End Connection: ASME B16.25
Flanged End Dimension: ASME B16.5
Dimensions
| DN | L | W | H | d |
| 15 | 140 | 200 | 320 | 10.5 |
| 20 | 140 | 200 | 320 | 13.5 |
| 25 | 140 | 200 | 320 | 18 |
| 32 | 178 | 280 | 440 | 22 |
| 40 | 178 | 280 | 440 | 28 |
| 50 | 216 | 300 | 490 | 34 |
