3 Piece Flanged Ball Valve

€19.39 – €818.86
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: , , ,

Description

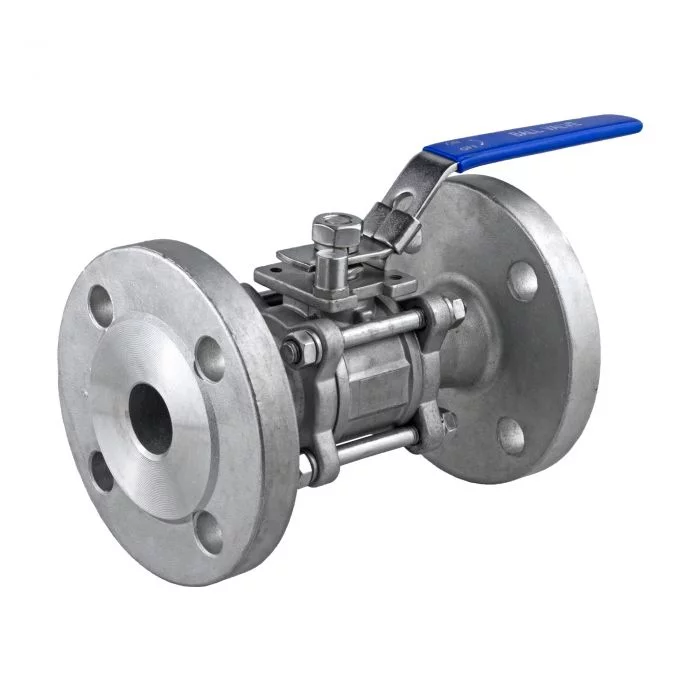

3 Piece Flanged Ball Valve

Full port or Reduced Port

Body Working Pressure: 1000 WOG (PN63)

Flange End Working Pressure: PN40

Working Temperature: -20°C to 200°C (-4°F to 392°F)

Investment casting

Blow-out proof stem

Anti-static device (option)

Locking device

Flange dimension : DIN 2501 to  PN40

Face to face: DIN 3202 – F1

Size: DN50 to DN200

ITEM PARTS MATERIAL
1 BODY WCB,Cast Iron CF8,CF8M
2 CAP
3 BALL CF8,CF8M,Carbon Steel,Cast Iron
4 STEM ASTM A276-316
5 GLAND NUT AISI 304
6 SEAT PTFE/RTFE
7 SEAL PTFE
8 PACKING
9 THRUST WASHER
10 SPRING WASHER AISI 304
11 STEM NUT
12 BOLT
13 NUT
14 SPRING WASHER
15 HANDLE STAINLESS STEEL
16 LOCKING DEVICE
17 HANDLE SLEEVE PVC

Dimension:

Size/Item D L H V D3 D2 D1 A G H N
1/2″ 15 130 77 129 45 65 95 16 2 14 4
3/4″ 20 150 82 129 58 75 105 18 2 14 4
1″ 25 160 92 143 68 85 115 18 2 14 4
1-1/4″ 32 180 98 143 78 100 140 18 2 18 4
1-1/2″ 38 200 109 170 88 110 150 18 2 18 4
2″ 50 230 120 170 102 125 165 20 3 18 4
2-1/2″ 64 290 142 254 122 145 185 22 3 18 8
3″ 76 310 152 254 138 160 200 24 3 18 8
4″ 100 350 176 320 162 190 235 24 3 22 8

Additional information

Body Material

CF8, CF8M
Class

150, 300
Size

1 1/2", 1 1/4", 1", 1/2", 2 1/2", 2", 3", 3/4", 4", 5", 6", 8"
