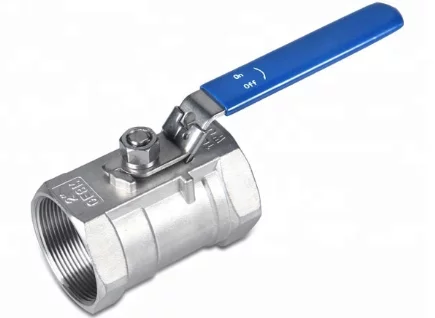

2 Piece Screwed Ball Valve

€5.81 – €184.60
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: , , ,

Description

2 Piece Screwed Ball Valve

Name of parts Material
Seal ring PTFE
Ball SS304
Gasket PTFE
Bonnet CF8M
Valve body CF8M
Stem SS304
Thrust washer PTFE
Packing PTFE
Gland Nut SS304
Washer SS304
Stem Mut SS201
Handle Cover PLASTIC
Handle SS201

2 Piece Ball Valve: PN:1.6 to 6.4MPa

Applicable temperature range: -20, -232℃, -350℃

Applicable medium: water, oil, gas and some corrosive liquid

Butt welding standard:ANSIB16·25

Dimension:

DN SIZE ΦB E L H W
DN15 1/2″ 15 14 61 54 105
DN20 3/4″ 20 15 71 61 110
DN25 1″ 25 18 81 67 130
DN32 1-1/4″ 32 20 96 80 140
DN40 1-1/2″ 38 21 105 87 165
DN50 2″ 49 21 120 97 175
DN65 2-1/2″ 65 28 162 122 215
DN80 3″ 80 30 170 141 250
DN100 4″ 100 32 225 163 300

Additional information

Body Material

CF8, CF8M
Class

1000PSI
Size

1 1/2", 1 1/4", 1", 1/2", 1/4", 2 1/2", 2", 3", 3/4", 3/8", 4"
