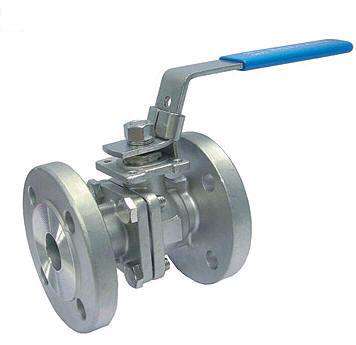

2 Piece Flanged Ball Valve

Design & manufacture : EN12516, DIN3357

Face to Face: DIN 3202, EN558-1, DN15 to DN100 (F4/F14), DN125 to DN250 (F5/F15)

Flange End : EN1092-2,  ISO7005-2

Nominal Pressure: PN16, PN25, PN40, PN63

Mounting Pad: ISO 5211

Pressure testing: EN1266, ISO 5208, DIN 3230

Specifications:

Body: Cast Iron, Cast Steel, Stainless Steel

Ball: Stainless steel 30, 316

Seat & Gasket: PTFE, RPTFE

Bolt & Nut : Steel

Stem: Stainless steel 304,316

Handle: Ductile Iron, Carbon Steel, Stainless Steel

Dimension:

Inches mm L D D1 D2 t C N-Φd
½” DN15 108 90 60.5 35 2 10 4-Φ16
¾” DN20 117 100 70 43 2 11 4-Φ16
1” DN25 127 110 79.5 51 2 12 4-Φ16
1-1/4” DN32 140 115 89 63.5 2 13 4-Φ16
1-1/2” DN40 165 125 98.5 73 2 15 4-Φ16
2” DN50 178 150 120.5 92 2 16 4-Φ19
2-1/2” DN65 190 180 140 105 2 18 4-Φ19
3” DN80 203 190 152.5 127 2 19 4-Φ19
4” DN100 229 230 190.5 157 2 24 8-Φ19
5” DN125 356 255 216 186 2 24 8-Φ22
6” DN150 394 280 241.5 216 2 26 8-Φ22
8” DN200 457 345 298.5 267 2 29 8-Φ22
10” DN250 533 405 362 324 2 31 12-Φ25

Additional information

Body Material

CF8, CF8M
Class

150, 300
Size

1 1/2", 1", 1/2", 2 1/2", 2", 3", 3/4", 4"
