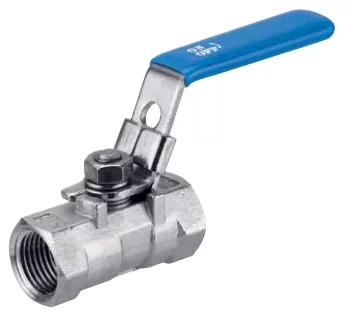

1 Piece Screwed Ball Valve

€6.59 – €105.69
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: , , ,

Description

1 Piece Screwed Ball Valve

Full Port or Reduced Port

Investment cast stainless steel unibody

Various thread standards available: BSP / NPT

Blow-out proof stem, Double reduced port

Size: ¼” to 2″ (64 bar)

Body: CF8M, Ductile Iron, Carbon Steel, Cast Iron

Ball: ASTM A351 Gr CF8M

Seat: PTFE

Insert: ASTM A351 Gr CF8M

Stem: SS316

Thrust washer: PTFE

Stem packing: PTFE

Gland ring: SS304

Handle: SS304

Stem washer: SS304

Stem nut: SS304

Locking device: SS304

Dimension:

DN 8 10 15 20 25 32 40 50
RC 1/4 3/8 1/2 3/4 1 11/4 11/2 2
Φd 5 7 9.2 12.6 16 20 25 32
L 39.4 43.7 57 58.5 71 78 82.5 100
LO 67 67 93 93 101 101 125 125
H 29.9 31.5 39.37 44 54 59 67.5 73.5

Additional information

Body Material

CF8, CF8M
Class

1000PSI
Size

1 1/2", 1 1/4", 1", 1/2", 2 1/2", 2", 3", 3/4"
